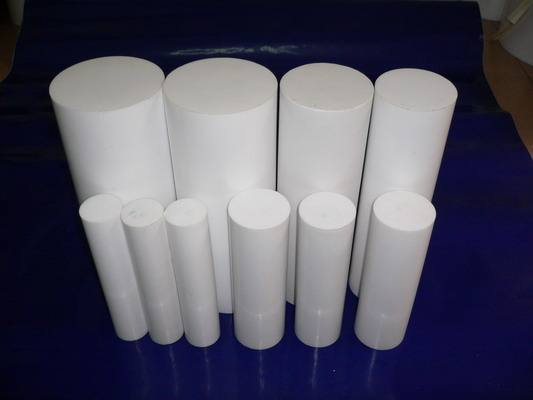

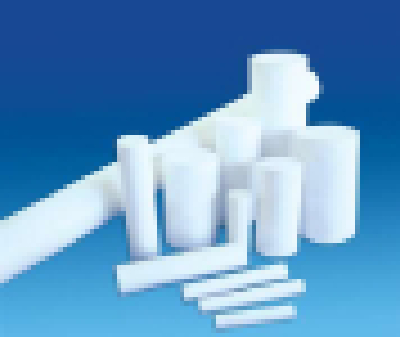

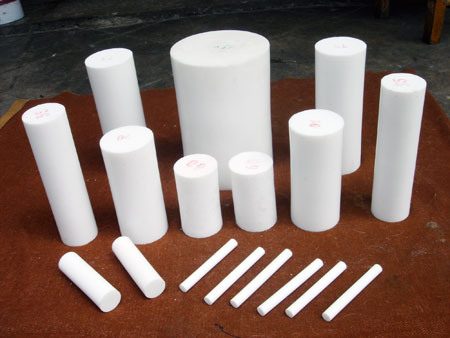

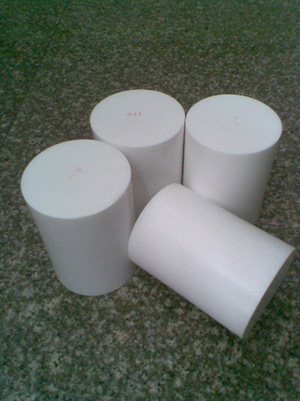

PTFE teflon rod manufactured by Xinrui Plastic
Better Features than other supplier:
Thermal stability
PTFE is one of the most thermally stable plastic materials. There are no appreciable decompositions at 260°C, so that PTFE, at this temperature, still possesses most of its properties. Appreciable decomposition begins at over 400°C.
Friction
PTFE possesses the lowest friction coefficients of all solid materials; between 0.05 and 0.09:
* the static and dynamic friction coefficients are almost equal, so that there is no seizure or stick-slip action
* when increasing the load, the friction coefficient decreases until reaching a stable value
* the friction coefficient increases with the speed
* the friction coefficient remains constant at temperature variations.
Gas permeability
The permeability of PTFE is similar to other plastic materials. The permeability does not depend, obviously, only on the thickness and pressure, but also on the working techniques.
Resistance
Resistance to chemical agents, Solvent resistance , Resistance to atmospheric agents and light , Resistance to radiations, Resistance to high and low temperature (-180 °C ~+260 °C ), Arc-resistance, Corona effect resistance, etc.
Dielectric constant and dissipation factor
PTFE has very low dielectric constant and dissipation factors values; these remain unvaried until 300°C, in a frequency field of up to 109 Hz even after a prolonged thermal treatment (6 months at 300°C). The dielectric constant, dissipation factor as well as the volume resistivity and surface resistivity, considered as being independent from the transformation processes.
Material of PTFE teflon rod:
100%Virgin PTFE resin, made in China or import matrial, recycled PTFE also avaible.(Products made of recycled PTFE resin, not have same good performance like Vigin PTFE products, so we don't introduce you buy recycled PTFE products )
Produce Specification of PTFE teflon rod:
Size of PTFE Rod | |
1/8" x 40" | 13/16" x 40" |
5/32" x 40" | 7/8" x 40" |
3/16" x 40" | 15/16" x 40" |
7/32" x 40" | 1" x 40" |
1/4" x 40" | 1-1/4" x 40" |
9/32" x 40" | 1-1/2" x 40" |
5/16" x 40" | 1-5/8" x 40" |
11/32" x 40" | 1-3/4" x 40" |
3/8" x 40" | 1-7/8" x 40" |
7/16" x 40" | 2" x 40" |
1/2" x 40" | 2-1/8" x 40" |
9/16" x 40" | 2-1/4" x 40" |
5/8" x 40" | 2-3/8" x 40" |
11/16" x 40" | 2-1/2" x 40" |
3/4" x 40" | 2-5/8" x 40" |
Note: Special size could me customized if needed. | |
Technology Spec of PTFE teflon rod:
| Property | Unit | Value |
| Density | g/cm3 | 2.21-2.3 |
| Tensile strength (min) | Mpa | ≥15.0 |
Break elongation rate | % | 100% |
Application of PTFE teflon rod:
Teflon Molded/ Extruded Rod is generally used as machining stock for all kinds of chemical, electrical and mechanical components where the outstanding performance characteristics of PTFE are required. Various fillers are available to modify the properties of PTFE to meet application requirements.
