- Size: 0.5m³
- Place of Origin: Jiangsu
- Brand Name: FUAN
- Model Number: XRPTFE003
- Weight: 20.000 kg

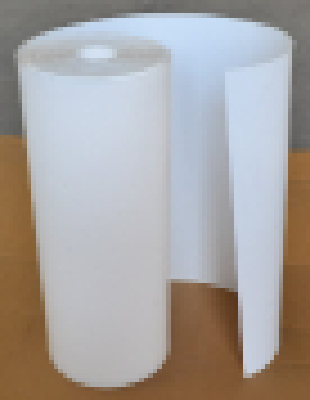

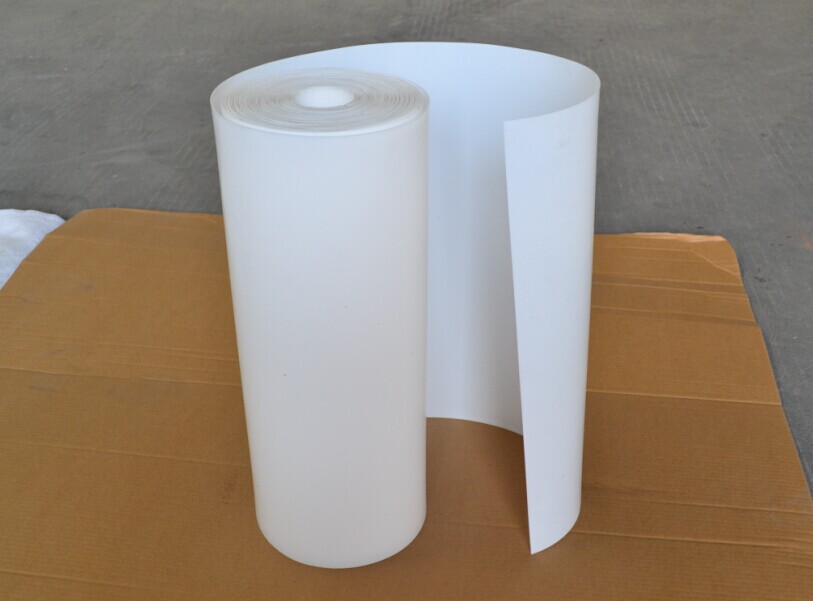

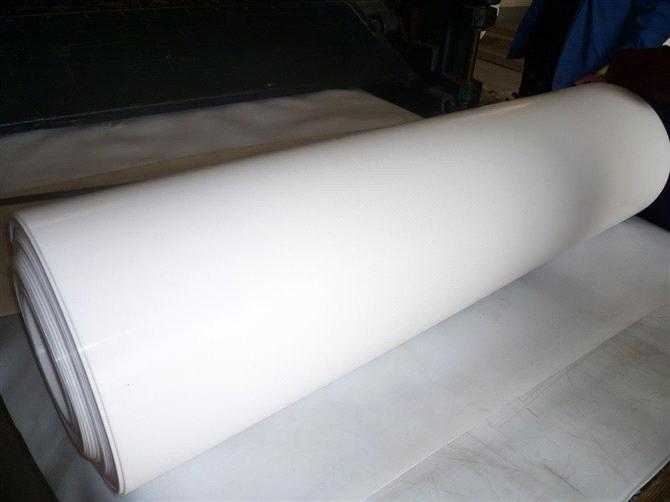

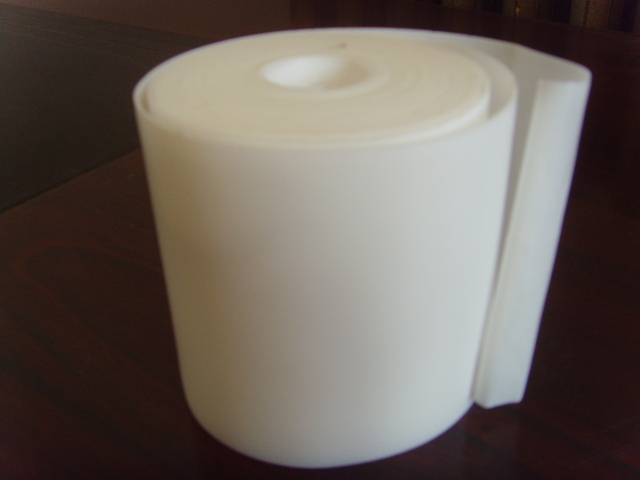

100% Pure PTFE skiving sheet, white PTFE sheet manufactured by Xinrui Plastic
Main properties of Xinrui 100% white ptfe sheet teflon board:
Ø H igh heat resistance -180~+260
Ø H igh resistance to chemical agents and solvents
Ø H igh anti adhesiveness
Ø H igh dielectric properties
Ø L ow friction coefficient
Ø N on-toxicity
Material:
1, Import Grade (Basell, Dupont, Daikin, Exxon , etc )
2, Virgin Grade (Pure China material)
3, Filled Grade (Filled with graphite, carbon, glass fiber, bronze powder,etc )
4, Semi-recycled Grade (Customized percentage)
5, Full-recycled Grade (Total recycled matrial, low performance)
Produce Specification:
Molded Sheet | Thickness | 1 mm to 100 mm |
| Width | 300 mm x 300 mm, 450 mm X 450 mm, 600 mm X 600 mm , 1000 mm X 1000 mm , 1200mm X 1200mm , 1500 X 1500mm, 1800 X 1800mm, 2000 X 2000mm, or customiezed in any size, pls contact us. |
Skived Sheet | Thickness | 0.1mm to 3mm |
| Width | 100mm to 2000mm |
| Length | Max 25M/ Roll |
Dimpled PTFE Sheet | Square sheet | Thickness 1mm to 100mm, Width 300mm to 2000mm |
| Round Sheet | Thickness 1mm to 100mm, Diameter 300mm to 2000mm |
Technology Specification:
Name | Standard | Index | ||
|
| Density (g/cm 3 ) | Tensile Strenth (MPa) | Break Elongation (%) |
PTFE Molded Sheet | SFB-1, SFB-2 of ZBG33002 | 2.10-2.30 | ≥ 15 | ≥ 150 |
PTFE Skived Sheet | SFB-1, SFB-2 of ZBG33002 | 2.10-2.30 | ≥ 15 | ≥ 150 |
Dimple PTFE Sheet | JT/T-4-2004 | 2.13-2.30 | ≥ 30 | ≥ 300 |
Application:
PTFE sheets are used in a wide variety of industries including heavy electricals, electronics
(for circuit boards), pumps and valves. Xinrui Plastic capable of achieving global standards of
tolerance on PTFE products .

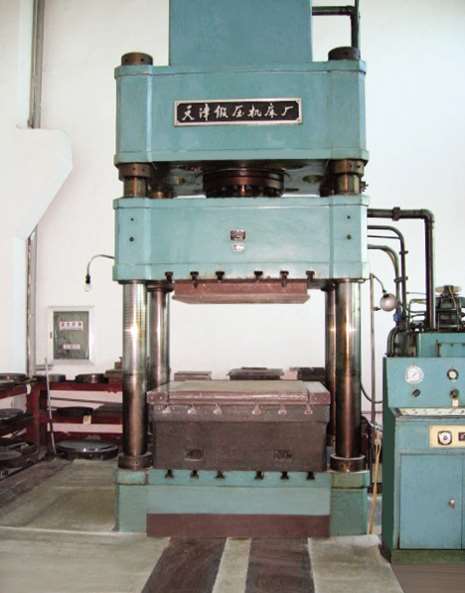

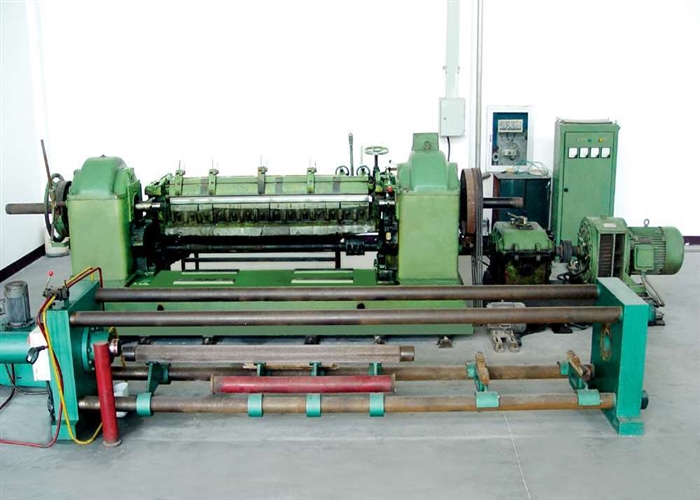

Produce machine:
- Size: 0.5m³
- Place of Origin: Jiangsu
- Brand Name: FUAN
- Model Number: XRPTFE003
- Weight: 20.000 kg
